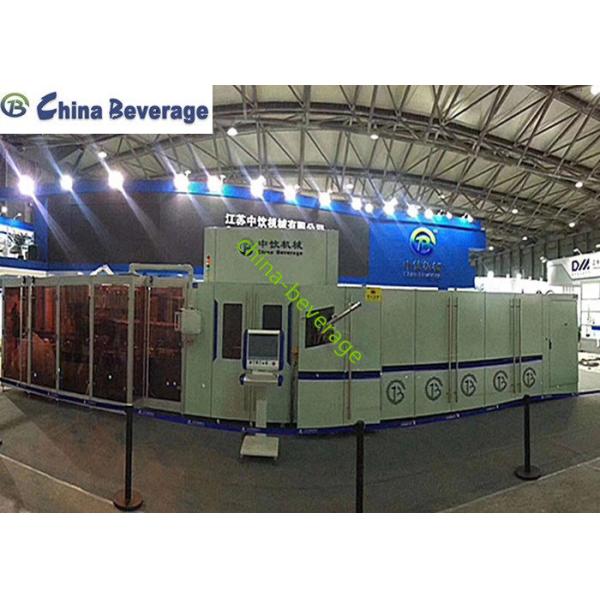

Automatic Mineral Water Plant Bottle Blowing-Filling-Capping
Combiblock Machine
Combiblock application
The combiblock has integrated the functions of blowing, filling,
and capping. It's controlled by PLC, the touch screen would
demonstrate the various parameters, such as heating temperature,
pressure change curve in blowing process, filling liquid level
position etc. If customers want to have any adjustments, they just
need to change the parameters on the screen.
Main feature
1). High-speed blow valve group with high-speed network control
ensures blowing technic precision and unification.
2). Three-dimensional dynamic simulating design ensures exact and
reliable cam transmission and mesh.
3). High-pressure blow valve group optimum design helps save air a
lot.
4). Quick-change for bottle mould.
5). Wearable aluminum alloy mould surface with special treatment of
hardness.
6). Key points automatic lubrication.
Working process
► Blowing system
! In-line ion gas duster, which is preform purification technology,
cleans the preform.
! High-efficiency and energy saving preform heating technology help
save much electrical power in preform heating part.
! It adopts the gripper transfer technology accurately controlled by
cam mechanism. It is very stable and reliable while transferring
preforms and bottle at high speed.Preform picking & sending and
bottle picking & ranking are all finished by grippers to avoid
middle pollution.
! Self-adaptation two-step blowing technology ensure the smooth and
effective blowing process, from which produce high-quality bottles.
1_ Ionic gas duster
2_ Preform heating furance
3_ Blowing part
4_ Gripper
► Filling machine
1). Clip the bottle neck with steel starwheel. There is no need to
adjust the equipment height when changing the bottle shape whose
diameters have no change.
2). Rotating disks all make from stainless steel ANSI304. Large
planar toothed bearings can ensure the stable operation of machine.
3). High-precision electronic liquid level filling valve makes fast
and slow fillings possible.
4). Automatic washing cup can circularly and thoroughly clean the
filling valve through CIP cleaning program.
5). Integrate filling valve with bottle lifting mechanism. The
simplified structure makes cleaning easier and could improve the
stability of the machine. Bottleneck is clipped by clippers.
6). High-speed and high-precision filling valve: 200ml/s, ± 2mm.
7). Servo drive system
8). With CIP cleaning function
►Capping machine
1). Full bottles will enter capping machine via transition
starwheel. The anti-rotation knife of capper blocks bottle neck to
keep bottle vertical and prevent rotation. Capping heads keep
revolution and do rotation. Under effect of cam, the action of
gripping cap, sleeve cap, screwing cap and discharging cap to
finish the whole capping process. The finished bottles are
deliveryed via bottle-out starwheel onto bottle-out conveyor, and
then are sent out of the blowing-filling-capping combiblock system.
2). Magnetic constant torque, defective rate≤ 0.2%
3). Reversal caps ejecting device
4). No bottles, no feeding cap
Advantages
1. The heating system is stable and effective by the use of
international famous brands.
2. The touch screen can demonstrate the various parameters, such as
heating temperature, pressure change curve in blowing process,
filling liquid level position etc. If there is any problem to any
process, it would be shown on the screen, and most problems can be
fixed by adjusting the parameters on the screen.
3. Specially designed twice blowing system can ensure the quality
of bottles and the stability of the blowing machine.
4. The transmission structure is precisely controlled by cams,
which can ensure the accurate and effective transmission.
5. The machine is equipped with safety door and alarm device,
ensuring the safety of workers to the largest extend.
6. The warranty time is one year. During the time, if there is any
problem, China-Beverage will solve it in the first time when we are
informed, leaving no concerns to our customer.
Model
| Model | Capacity (500ml-water bottle) | Remark |
| ZYBFC8-28-10 | 16000Bph | Blowing:8 cavity, Filling: 28 heads, Capping: 10 heads |
| ZYBFC10-36-12 | 20000Bph | Blowing: 10 cavity, Filling: 36 heads, Capping: 12 heads |
| ZYBFC12-40-15 | 24000Bph | Blowing: 12 cavity, Filling: 40 heads, Capping: 15 heads |
| ZYBFC14-50-18 | 28000Bph | Blowing: 14 cavity, Filling: 50 heads, Capping: 18 heads |
| ZYBFC16-50-18 | 32000Bph | Blowing: 16 cavity, Filling: 50 heads, Capping: 18 heads |
| ZYBFC18-60-20 | 36000Bph | Blowing: 18 cavity, Filling: 60 heads, Capping: 20 heads |
| ZYBFC20-72-24 | 40000Bph | Blowing: 20 cavity, Filling: 72 heads, Capping: 24 heads |
